Eazy Cabinets-Square Connectors-Frame Builder Full Kit. 100% Customizable to Length - Width - Height.

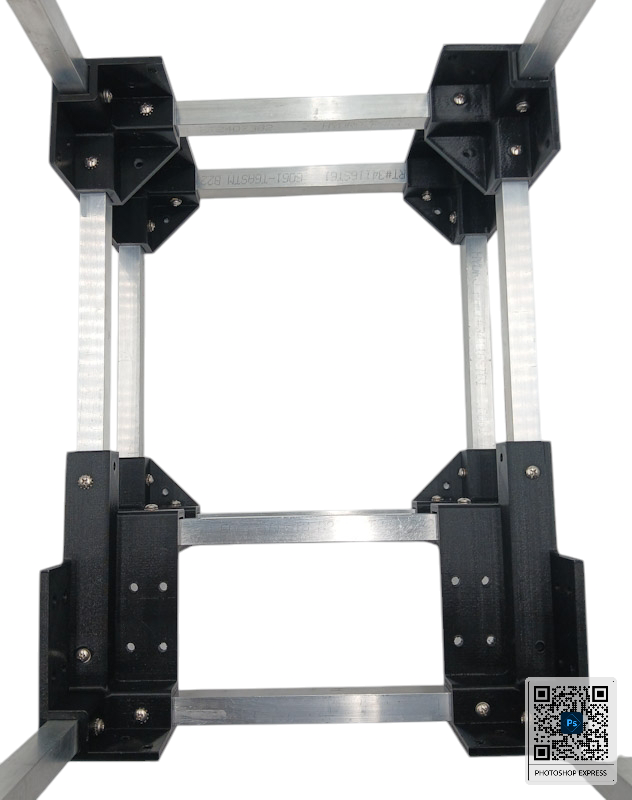

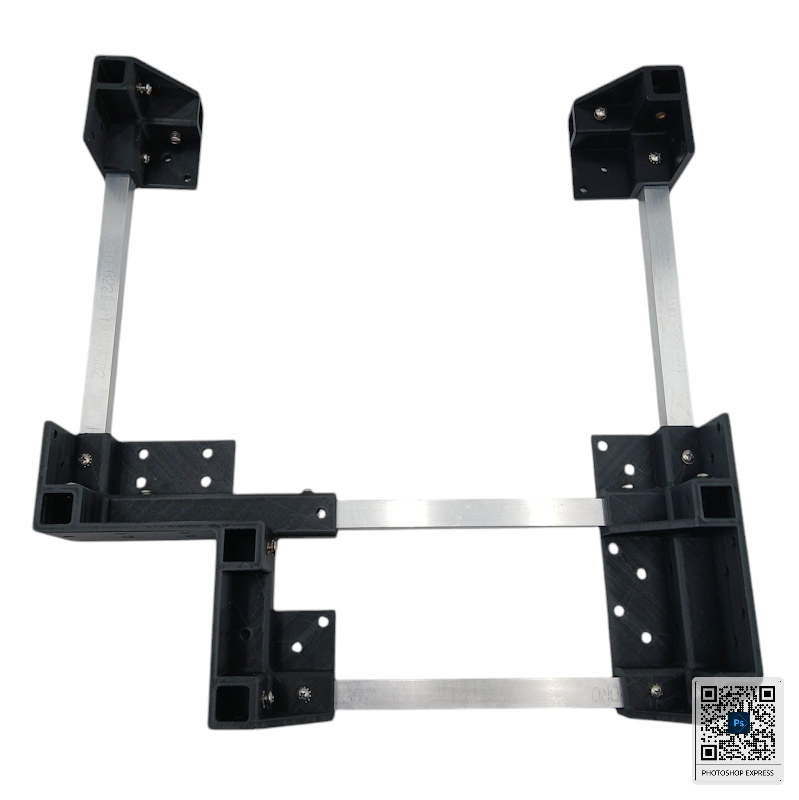

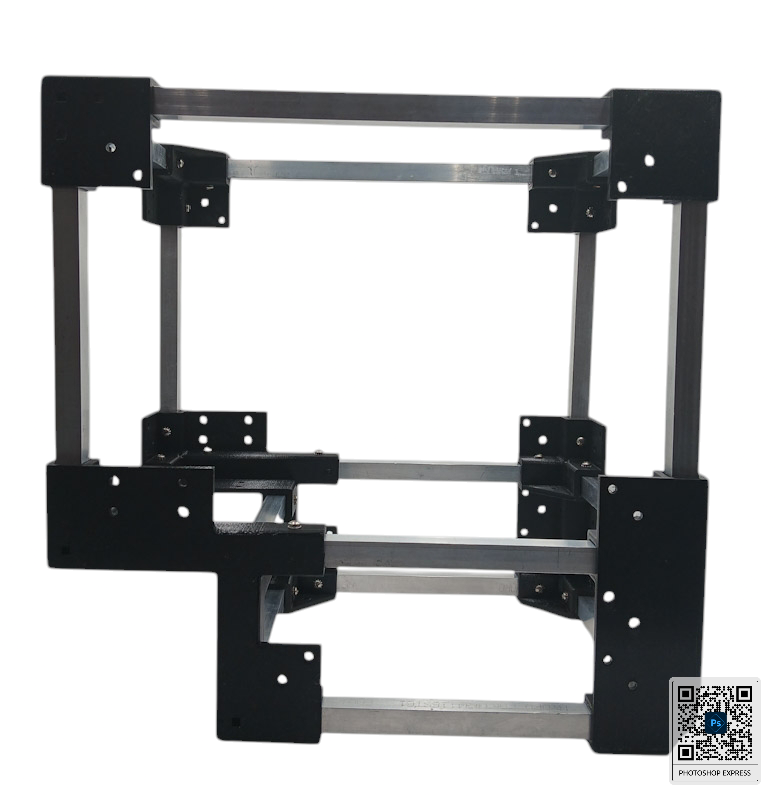

The Eazy Cabinets - Square Connector - Frame Builder is a complete Full Frame Builder kit for Kitchen and Bathroom Base Cabinets up to 36" Length. Combine these Frame Builds to complete your Base Cabinets. 100% Customizable of Length Width Heighr. For Frame Builds longer please choose another Frame Build of 36" Length or Higher. 1 person can complete the Frame Build and installation.

 The 3-Way Frame Connectors made of high-quality PLA with brass inserts and set screws. 1-Top and qty: 2 Side Panels.

 Each arm length is 1 3/4" for tube or bar insert. Each arm is 3" total length. .81 center for 3/4" x 3/4" tube or bar insert.

 The base is 1 1/4" length and 1 1/4" x 1 1/4" width with 100% honeycomb infill for superior strength.

The side panel is 1/4" thick and is 1 3/4" x 1 3/4" length and width to match each arm. Comes with qty. 4 - 3 - Way with Top and Side Panel Connectors

The Square Connectors - Eazy Cabinets Kitchen Base cabinet connector. 5 - Way both left and right rear. Makes your cabinet and frame Assembly for eazy installment. The Dimensions are: The height of the Kitchen base connector is 7 3/4". The width is 3" x 3". Each arm is 1 3/4" length. The base is 1 1/4" length and 1 1/4" width with 100% honeycomb infill for superior strength.

Each arm length is 1 3/4" for tube or bar insert. Each arm is 3" total length. .81 center for 3/4" x 3/4" tube or bar insert.

 Square Connectors - Eazy Cabinets Kitchen Base cabinet connector 6 - Way for Left and Right Front installment. Makes your cabinet and frame high quality for Eazy Assembly and Installment. The Dimensions for The Kitchen Base connector - Left Front is: 4 1/2'" Height for Toe Kick and 4 1/2" Length for Base Panel.

 The 6 - Way Kitchen Base connector length 7 3/4" and 7 3/4" height. Each arm is 1 3/4" length. The base is 1 1/4" length. Total arm length is 3". The width is 1 1/4"  with 100% honeycomb infill for superior strength.

 .81 center for each arm for 3/4" x 3/4" for aluminum tube or bar insert.

 For Frame Build you have 3 different Assembly options see below.

1 Brass Tapered Heat Set Inserts for plastic 10-24, .225" Installed Length. Machine screws Phillips pan head, stainless steel 18-8 #10- 24 x 5/16" Length.

Lock Washer internal tooth #10

 2. Self Driving machine screws with Phillips Head Size #10 , 1/2" length or #10 - 5/8" length. Black or Silver Head.

 3-A Stainless Steel Jack Nut Size M6 - 1/4", 3/8" Length. 3-B Expansion screws with Petal nut and Jacknut Size M6 - 1/4", 3/8" Length.

3-C Rivet Nut Size 1/4", 3/8" Length.

 Suppliers list is included for which Frame Build Assembly method you choose.

 These connectors provide the perfect square for any frame and serve as the foundation to build your frame successfully. Available in various configurations, including 1 way, 2 way, 3 way, 4 way, and 5 way connectors, each designed to complete your frame. These versatile connectors are perfect for kitchen base and bath frames. Compatible with 3/4" x 3/4" square tube or bar made of aluminum is recommendation. For Frame build. The black PLA plastic connectors are durable and high-strength, making them ideal for various framing projects. Elevate your frame-building experience with Square Connectors. Each Square Connector is rated at 300 lbs. Residential use only.

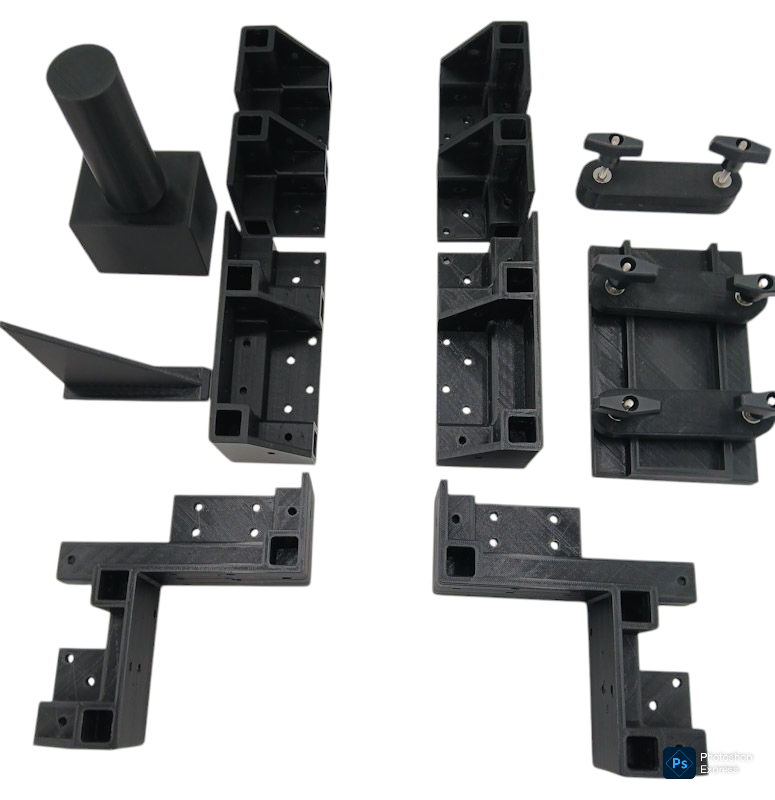

The Square Connectors - Eazy Cabinets - Frame Builder kit does include:

 1. Qty 2 - 6 Ways Left and Right Base

 2. Qty 2 - 5 Ways Left and Right Base

 3. Qty 4 - 3 Ways Top and Side Panel Connectors

 4. Jig Kit - Top and Bottom Jig. 6 - T knobs 6 - 3" 20 thread bolts with Phillips Head. 1 - 5" Square 1 Large Hammer 2 - Pencils

 5 Online Instructions and Videos Provided for Assembly
