HomeTeamStore  |  SKU: 93467  |  Barcode: 769947504896

Eazy Furniture - Square Connectors - Frame Builder Kit 3 Way 2 - Tier Outside shelves 100% Customizable to Length Width Height

$27.95 USD
Shipping calculated at checkout.


Customer Service email:

thehometeamstore@gmail.com

and 19375995810

Shipping via UPS

Domestic and International shipping from ups ground to next day air.

Description

The Eazy Furniture - Square Connectors - Frame Builder makes the assembly of your Frame with ease. The Frame Builder is 100% Customizable to Length Width Height. 1 person can Build and assemble each frame. All Square Connectors - Frame Builder kit includes Jig both Top and Bottom base making cutting your Frame with ease. With Qty 8 - T Knobs Qty 8 - 3" Bolts. A Hammer Square and 2 pencils included in each Frame Builder kit to ensure your success. Full Frame Builder kit content listed below.

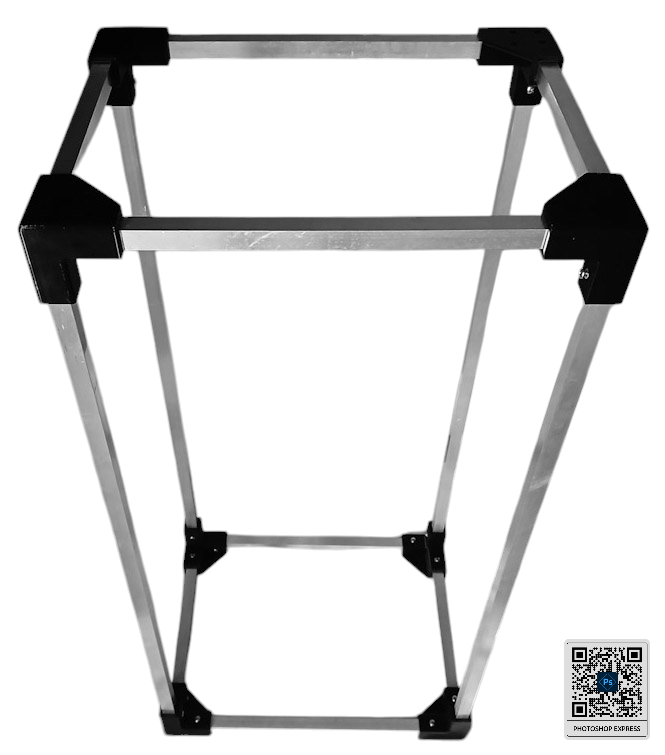

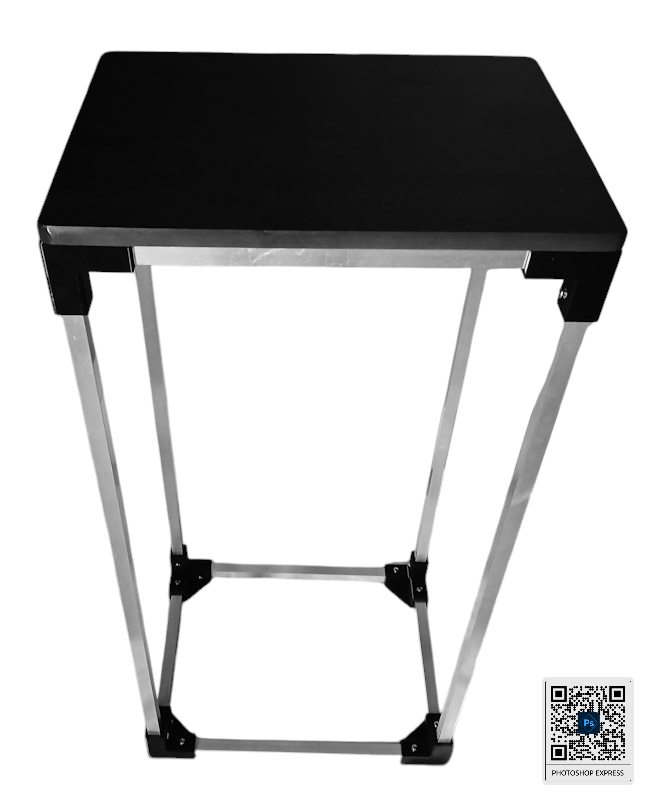

The Square Connectors 1 tier full build is the easiest build for coffee table table lamps to a tv stand..100% Customizable to Length Width Height. Comes with Qty 4 -3 Ways with top arm connectors for straight legs. Qty 4 - 3/4 x 3/4" Furniture black square tips.



The Square Connectors 2 tier full Frame Builder kit has Qty 4 - 3 - way top arm connector. Qty 4 - 3 way top arm connector. Total kit includes. Qty 4 - 3 - way top arm connector. Qty 4 - 3-Ways with top arm connector. Jig Kit with bottom and top fastener for cutting your aluminum tube or bar. Hammer Square and 2 pencils included.

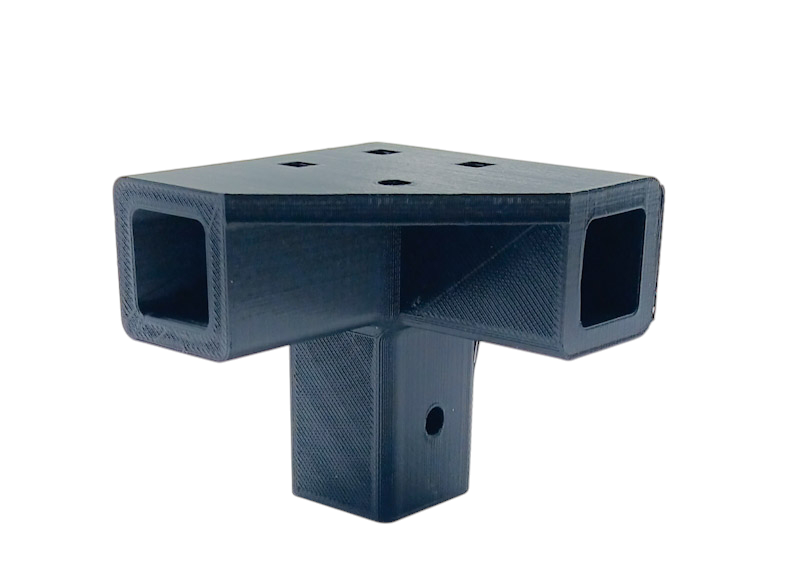

The Square Connectors 3 tier has all 1 and 2 tier adding the Qty 4 - 4 - way top arm connector for top wood board assembly

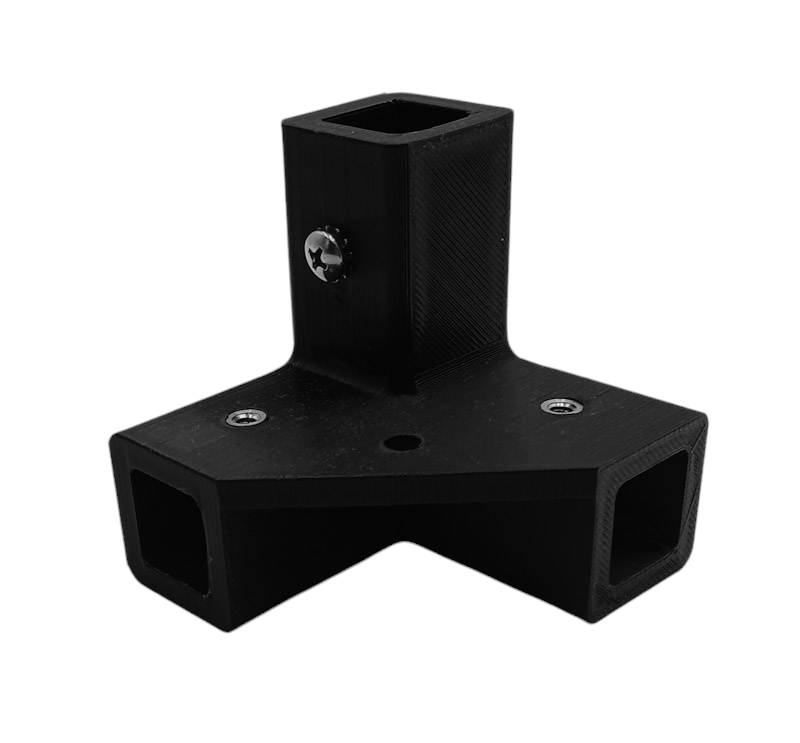

These connectors provide the perfect square for any frame and serve as the foundation to build your frame successfully. Available in various configurations, including 1 way, 2 way, 3 way, 4 way, and 5 way connectors, each designed to complete your frame. These versatile connectors are perfect for kitchen base frames, bathroom frames, cupboards, home entertainment frames, coffee tables, storage frames, contractor frames, college dorms, or any custom frame you desire. Compatible with 3/4" x 3/4" square tube or bar made of aluminum, steel, wood, or plastic, these black PLA plastic connectors are durable and high-strength, making them ideal for various framing projects. Elevate your frame-building experience with Square Connectors. Each Square Connector is rated at 300 lbs. Residential use only.



For the Frame Build you have 3 different Assembly options see below.



1 Brass Tapered Heat Set Inserts for plastic 10-24, .225" Installed Length. Machine screws Phillips pan head, stainless steel 18-8 #10- 24 x 5/16" Length.

Lock Washer internal tooth #10



2. Self Driving machine screws with Phillips Head Size #10 , 1/2" length or #10 - 5/8" length. Black or Silver Head.



3-A Stainless Steel Jack Nut Size M6 - 1/4", 3/8" Length. 3-B Expansion screws with Petal nut and Jacknut Size M6 - 1/4", 3/8" Length.

3-C Rivet Nut Size 1/4", 3/8" Length.



A suppliers list is included in each Frame Builder kit.



Each arm length is 1 3/4" for tube or bar insert. Each arm is 3" total length. .81 center for 3/4" x 3/4" tube or bar insert.



The base is 1 1/4" length and 1 1/4" x 1 1/4" width with 100% honeycomb infill for superior strength.



These connectors provide the perfect square for any frame and serve as the foundation to build your frame successfully. Available in various configurations, including 1 way, 2 way, 3 way, 4 way, and 5 way connectors, each designed to complete your frame. These versatile connectors are perfect for kitchen base frames, bathroom frames, cupboards, home entertainment frames, coffee tables, storage frames, contractor frames, college dorms, or any custom frame you desire. Compatible with 3/4" x 3/4" square tube or bar made of aluminum, steel, wood, or plastic, these black PLA plastic connectors are durable and high-strength, making them ideal for various framing projects. Elevate your frame-building experience with Square Connectors. Each Square Connector is rated at 300 lbs. Residential use only.

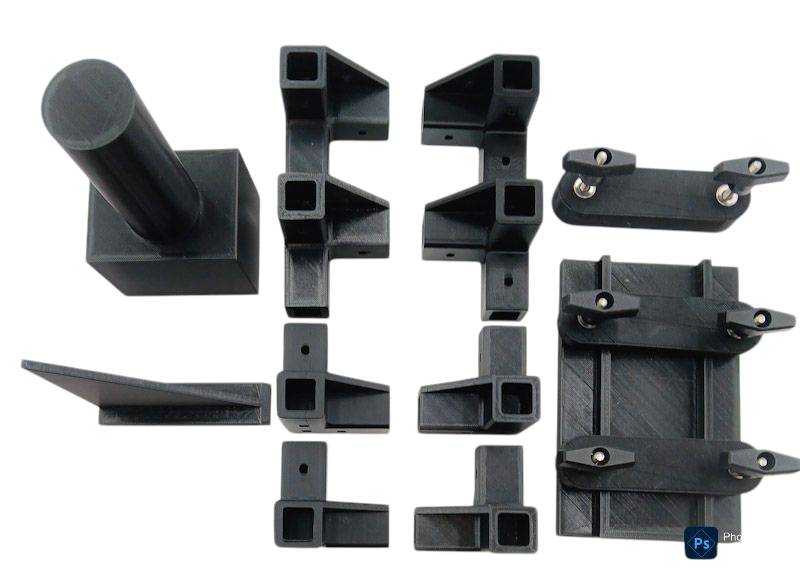

The 1 - tier Eazy Furniture - Square Connectors - Full Frame Builder kit comes with:

 1. QTY 8. Part 93331 3-Way Top Arm Connector. And

Part 93465 - Jig Kit for Cutting  Qty 4 - aluminum. 75 x .75 with Hammer Square 2 pencils sold separately
